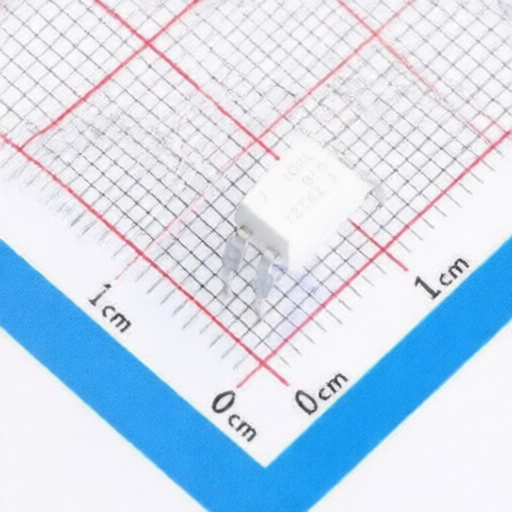

ISOMICRON ICPL-815-110EAXW
Manufacturer:
ISOMICRON
Asian Brands
Mfr. Part #:
ICPL-815-110EAXW
Package:
DIP-4
Customer #:
Key Attributes:
High Isolation Photo Coupler
Description:
Darlington Transistor Output 5kVrms DIP-4
Datasheet:
ISOMICRON ICPL-815-110EAXW
Products Specifications
Manufacturer:
Package:
DIP-4
Output Current:
80mA
Rise time:
95us
Fall time:
84us
Vce Saturation(VCE(sat)):
800mV@20mA,5mA
Operating Temperature:
-40℃~+110℃
Load Voltage:
40V
Reverse Voltage:
6V
Load Type:
Darlington Transistor
Current transfer ratio:
600%;7500%
Forward Current(If):
60mA
Input type:
DC
Isolation Voltage(Vrms):
5kV
Pd - Power Dissipation:
200mW
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
