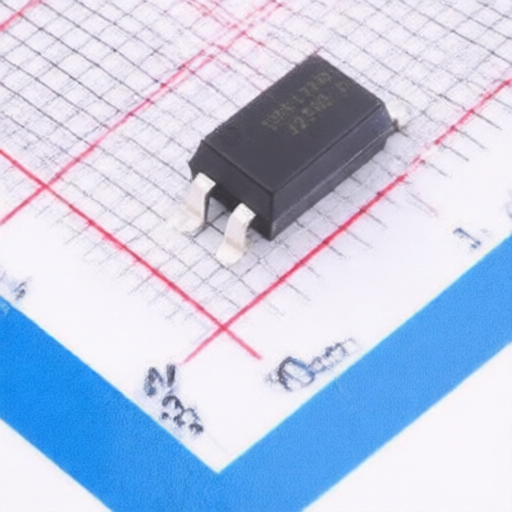

ISOMICRON ISP817XBSMT&R-Cu-AXW
Manufacturer:
ISOMICRON
Asian Brands
Mfr. Part #:
ISP817XBSMT&R-Cu-AXW
Package:
SMD-4P
Customer #:
Key Attributes:
High Isolation Photo Coupler
Description:
50mA 200mV@20mA,1mA 80V 6V DC SMD-4P Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
ISOMICRON ISP817XBSMT&R-Cu-AXW
Products Specifications
Manufacturer:
Package:
SMD-4P
Output Current:
50mA
Rise time:
3us
Fall time:
4us
Vce Saturation(VCE(sat)):
200mV@20mA,1mA
Operating Temperature:
-40℃~+110℃
Load Voltage:
80V
Reverse Voltage:
6V
Current transfer ratio:
130%;260%
Forward Current(If):
60mA
Pd - Power Dissipation:
200mW
Number of Channels:
1
Load Type:
Phototransistor
Input type:
DC
Isolation Voltage(Vrms):
6kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
