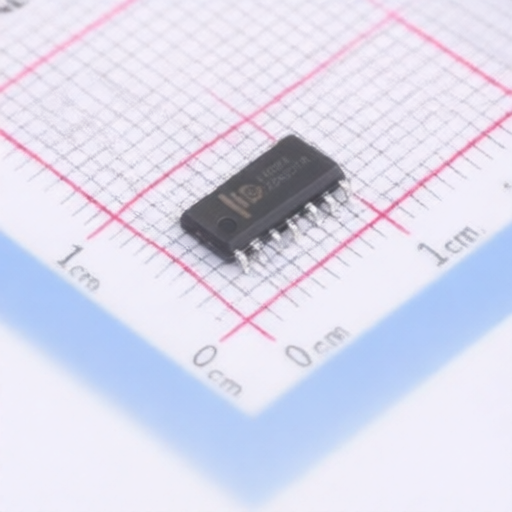

IDCHIP LM324S
Manufacturer:
IDCHIP
Asian Brands
Mfr. Part #:
LM324S
Package:
SOP-14
Customer #:
Key Attributes:
1MHz high-voltage bipolar quad operational amplifier
Description:
Standard (General Purpose) Amplifier 4 Circuit SOP-14
Datasheet:
IDCHIP LM324S
Products Specifications
Manufacturer:
Package:
SOP-14
Vos - Input Offset Voltage:
7mV
Ib - Input Bias Current:
45nA
Slew Rate:
400V/ms
Quiescent Current(Iq):
2.36mA
Common Mode Rejection Ratio(CMRR):
90dB
Output Current:
240mA
Operating Temperature:
-25℃~+85℃
Voltage - Supply:
3V~30V;-15V~-1.5V;1.5V~15V
Gain Bandwidth Product:
1MHz
Input Offset Voltage Drift(Vos TC):
7uV/℃
Maximum Power Supply Range (Vdd-Vss):
30V
Number of Channels:
4
Rail To Rail:
-
Input Offset Current(Ios):
5nA
Noise density(eN):
50nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
