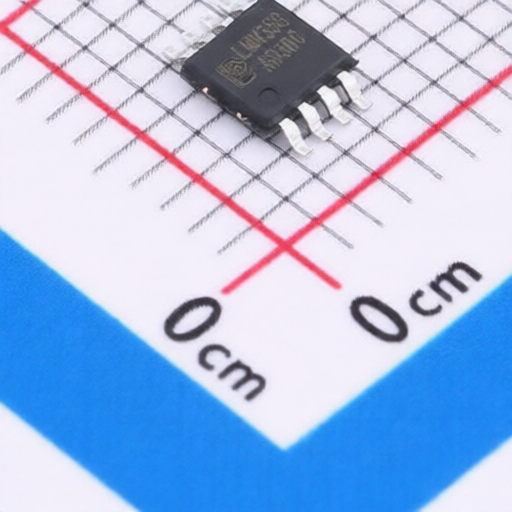

IDCHIP LMV358S
Manufacturer:
IDCHIP
Asian Brands
Mfr. Part #:
LMV358S
Package:
MSOP-8
Customer #:
Key Attributes:
1.1MHz,85uA,CMOS,RRIO Operational Amplifiers
Description:
500uV 1pA 800V/ms 95dB 1.1MHz 2 Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Amplifiers RoHS
Datasheet:
IDCHIP LMV358S
Products Specifications
Manufacturer:
Package:
MSOP-8
Vos - Input Offset Voltage:
500uV
Input offset current drift(Ios TC):
-
Ib - Input Bias Current:
1pA
Slew Rate:
800V/ms
Quiescent Current(Iq):
85uA
Common Mode Rejection Ratio(CMRR):
95dB
Operating Temperature:
-40℃~+125℃
Output Current:
40mA
Voltage - Supply:
2.3V~5.5V;-2.75V~-1.15V;1.15V~2.75V
Gain Bandwidth Product:
1.1MHz
Input Offset Voltage Drift(Vos TC):
2uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
1pA
Noise density(eN):
35nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
