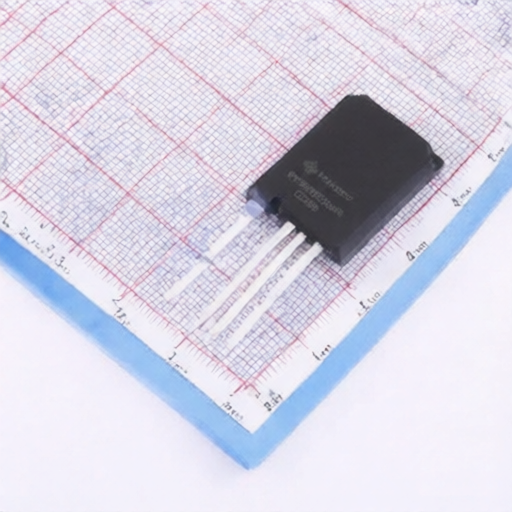

HXY MOSFET IKY75N120CH3XKSA1-HXY
Manufacturer:
HXY MOSFET
Asian Brands
Mfr. Part #:
IKY75N120CH3XKSA1-HXY
Package:
TO-247P-4L
Customer #:
Description:
930W 1.2kV TO-247P-4L Single IGBTs RoHS
Datasheet:
HXY MOSFET IKY75N120CH3XKSA1-HXY
Products Specifications
Manufacturer:
Package:
TO-247P-4L
Td(off):
188ns
Pd - Power Dissipation:
930W
Td(on):
63ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
65pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@2.6mA
Gate Charge(Qg):
307nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
366ns
Switching Energy(Eoff):
3mJ
Turn-On Energy (Eon):
3.9mJ
Input Capacitance(Cies):
9.883nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
274pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
