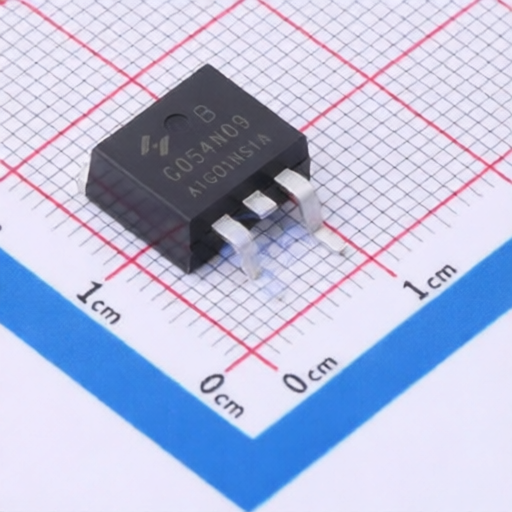

HUAYI HYG054N09NS1B
Manufacturer:
HUAYI
Asian Brands
Mfr. Part #:
HYG054N09NS1B
Package:
TO-263-2L
Customer #:
Key Attributes:
MOSFET N-CH 85V 135A TO-263-2L
Description:
N-Channel 85V 135A 187.5W Surface Mount TO-263-2L
Datasheet:
HUAYI HYG054N09NS1B
Products Specifications
Manufacturer:
Package:
TO-263-2L
Drain to Source Voltage:
85V
Current - Continuous Drain(Id):
135A
Operating Temperature -:
-55℃~+175℃
RDS(on):
5.8mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
59pF
Number:
1 N-channel
Output Capacitance(Coss):
669pF
Input Capacitance(Ciss):
5.067nF
Pd - Power Dissipation:
187.5W
Gate Charge(Qg):
88.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUAYI
323 Products
HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
