HUASHUO HSBA3080
Manufacturer:
HUASHUO
Asian Brands
Mfr. Part #:
HSBA3080
Package:

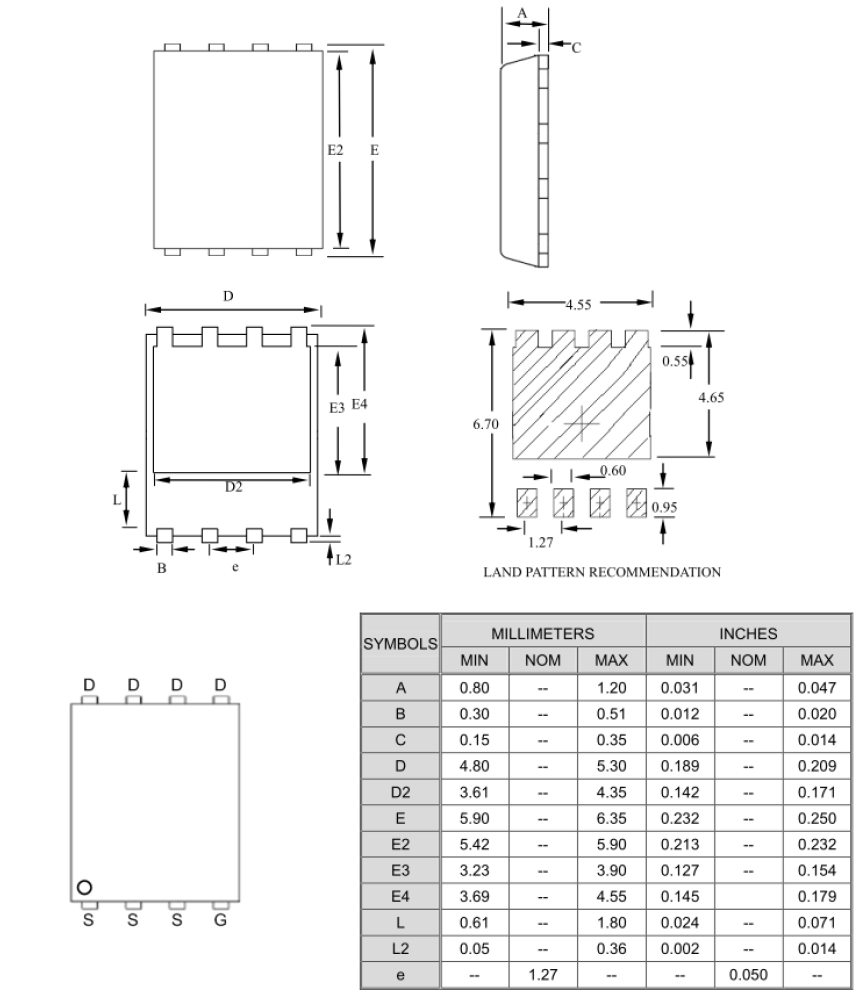

PRPAK-8(5x6)
Customer #:
Key Attributes:
MOSFET N-CH 30V 110A PRPAK-8(5x6)
Description:
30V 110A 1.8V 1 N-channel 52W PRPAK-8(5x6) Single FETs, MOSFETs RoHS
Datasheet:
HUASHUO HSBA3080
Products Specifications
Manufacturer:
Package:
PRPAK-8(5x6)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
110A
RDS(on):
1.6mΩ@10V;2.7mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
156pF
Number:
1 N-channel
Pd - Power Dissipation:
52W
Output Capacitance(Coss):
946pF
Input Capacitance(Ciss):
2.232nF
Gate Charge(Qg):
21nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
