HUASHUO HSKA4090A
Manufacturer:
HUASHUO
Asian Brands
Mfr. Part #:
HSKA4090A
Package:

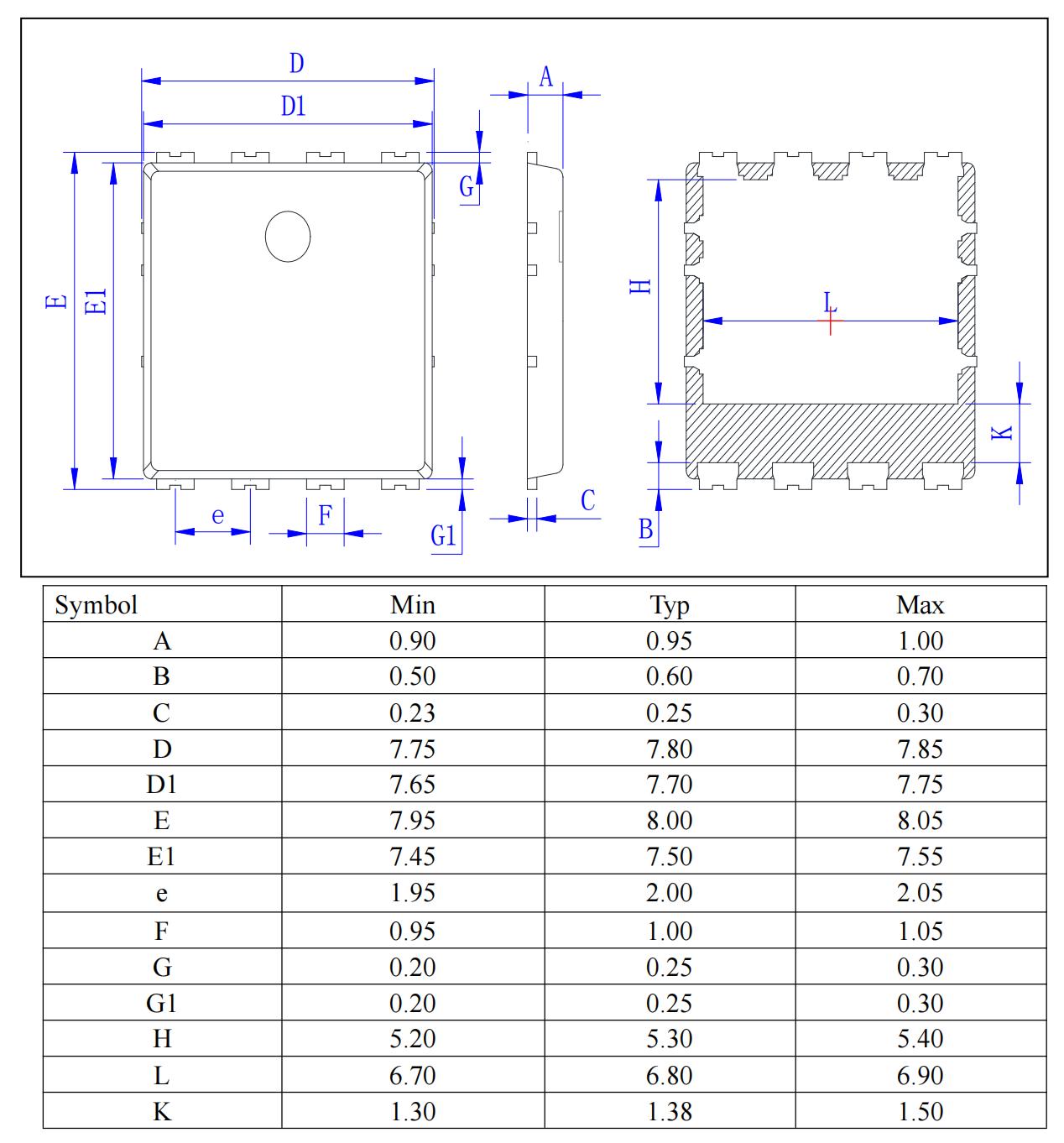

DFN-8(8x8)
Customer #:
Key Attributes:
MOSFET N-CH 40V 320A DFN-8(8x8)
Description:
40V 320A 0.7mΩ@10V 4V 1 N-channel 180W DFN-8(8x8) Single FETs, MOSFETs RoHS
Datasheet:
HUASHUO HSKA4090A
Products Specifications
Manufacturer:
Package:
DFN-8(8x8)
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
320A
RDS(on):
0.7mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
162pF
Number:
1 N-channel
Input Capacitance(Ciss):
6.51nF
Output Capacitance(Coss):
3.06nF
Pd - Power Dissipation:
180W
Gate Charge(Qg):
93nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HUASHUO
618 Products
Huashuo Semiconductor Co., Ltd.
(hereinafter referred to as "HUASHUO") is a semiconductor device company focusing on independent research and development, sales and service. HUASHUO adheres to the principle of "developing new technologies, manufacturing new products, and creating new solutions." It has the design capabilities of a full range of medium/low voltage Power MOSFET discrete devices and special process ICs. The products are widely used in computers, automotive electronics, industrial electronics, consumer electronics, communication power supplies, lithium batteries and other new energy industries.
