HUASHUO HSP0195A
Manufacturer:
HUASHUO
Asian Brands
Mfr. Part #:
HSP0195A
Package:

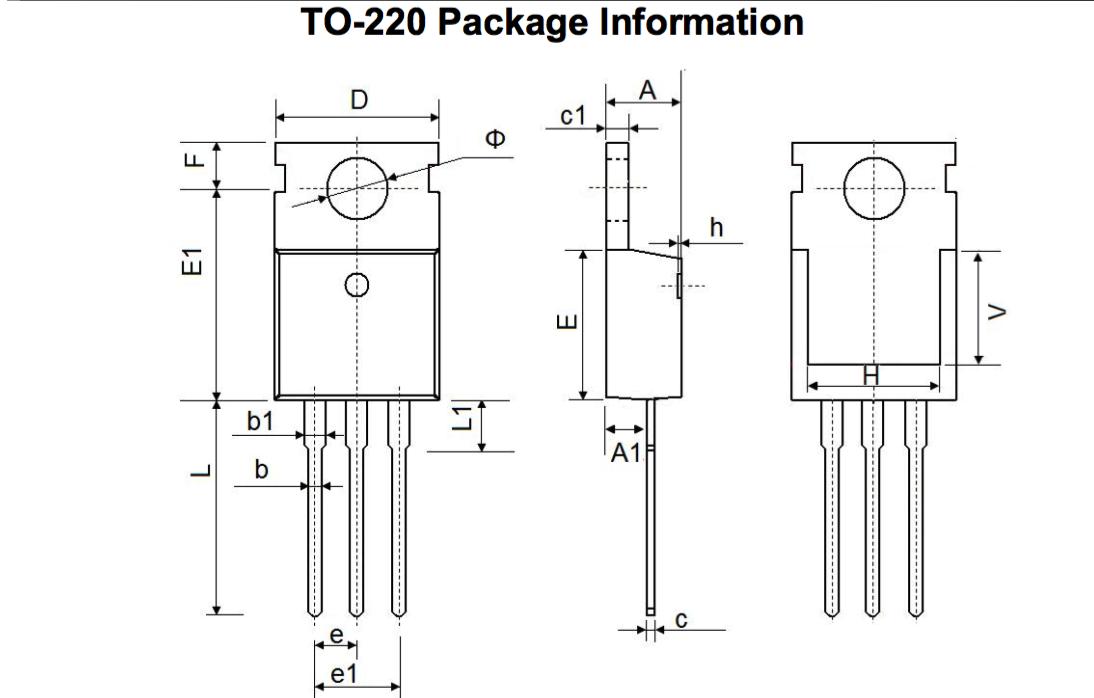

TO-220
Customer #:
Key Attributes:
MOSFET P-CH 100V 85A TO-220
Description:
100V 85A 17mΩ@10V 2.8V 1 P-Channel 205W TO-220 Single FETs, MOSFETs RoHS
Datasheet:
HUASHUO HSP0195A
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
85A
RDS(on):
17mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.8V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
95pF
Number:
1 P-Channel
Input Capacitance(Ciss):
3.25nF
Pd - Power Dissipation:
205W
Output Capacitance(Coss):
1.423nF
Gate Charge(Qg):
52nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
