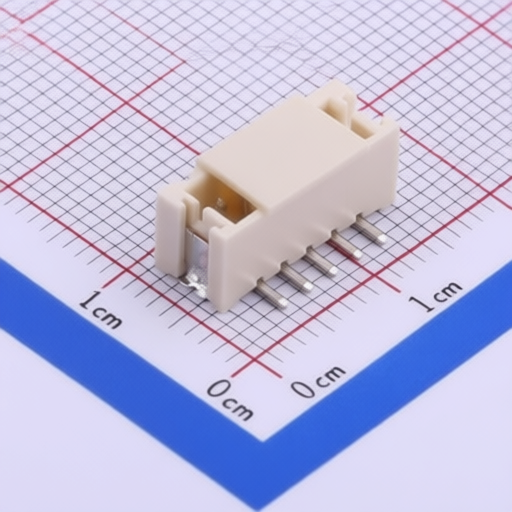

Hongxing HX20007-5AB
Manufacturer:
Hongxing
Asian Brands
Mfr. Part #:
HX20007-5AB
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 2mm
Description:
Connector Header 5 position 2mm Pitch Surface Mount,Vertical
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
5.4mm
Reference Series:
PH
Pins Structure:
1x5P
Pitch:
2mm
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
13.95mm
Z-Height of the Board:
6.55mm
Row Spacing:
-
Operating Temperature:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hongxing
1645 Products
Zhejiang HX Electrical Co., Ltd. was established in 1989 and is a member of the China Electric Connector Components Industry Association, with a total factory area of 65,000 square meters. The company primarily produces electrical connectors and terminals.
