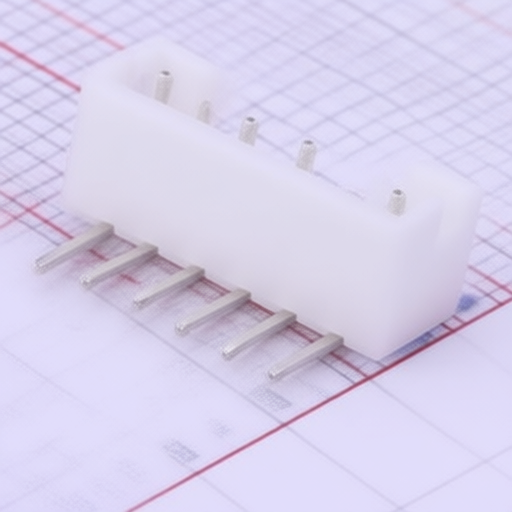

Hongxing HX20007-7WAP
Manufacturer:
Hongxing
Asian Brands
Mfr. Part #:
HX20007-7WAP
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 7POS 2mm
Description:
Connector Header 7 position 2mm Pitch Right Angle
Datasheet:
Hongxing HX20007-7WAP
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
6mm
Pins Structure:
1x7P
Reference Series:
PH
Contact Material:
Brass;PA
Pitch:
2mm
Number of PINs Per Row:
7
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
15.9mm
Z-Height of the Board:
4.8mm
Row Spacing:
-
Operating Temperature:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hongxing
1645 Products
Zhejiang HX Electrical Co., Ltd. was established in 1989 and is a member of the China Electric Connector Components Industry Association, with a total factory area of 65,000 square meters. The company primarily produces electrical connectors and terminals.
