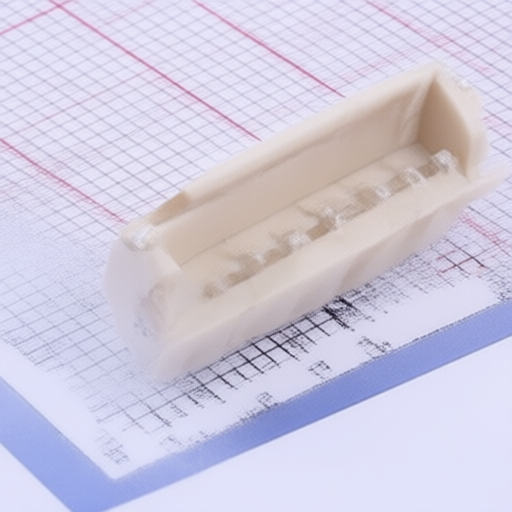

Hongxing HX25003-6AWB
Manufacturer:
Hongxing
Asian Brands
Mfr. Part #:
HX25003-6AWB
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 6POS 2.5mm
Description:
Connector Header 6 position 2.5mm Pitch Surface Mount, Right Angle
Datasheet:
Hongxing HX25003-6AWB
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
7.8mm
Reference Series:
XH
Pins Structure:
1x6P
Pitch:
2.5mm
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
19.95mm
Z-Height of the Board:
6.1mm
Mounting Type:
Surface Mount, Right Angle
Row Spacing:
-
Operating Temperature:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hongxing
1645 Products
Zhejiang HX Electrical Co., Ltd. was established in 1989 and is a member of the China Electric Connector Components Industry Association, with a total factory area of 65,000 square meters. The company primarily produces electrical connectors and terminals.
