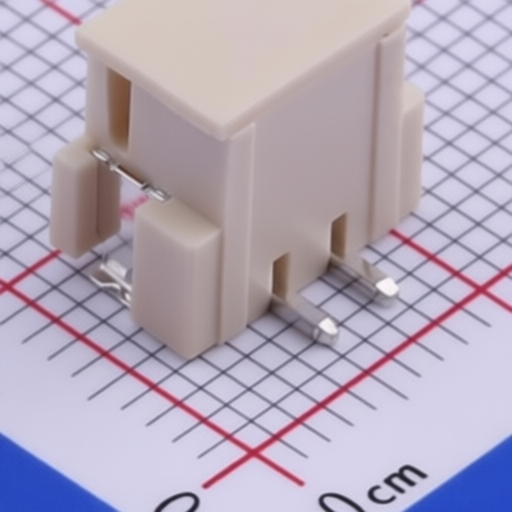

Hongxing HX25003-2AB
Manufacturer:
Hongxing
Asian Brands
Mfr. Part #:
HX25003-2AB
Package:
SMD,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 2POS 2.5mm
Description:
Connector Header 2 position 2.5mm Pitch Surface Mount,Vertical
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x2P
Reference Series:
XH
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
1
Row Spacing:
-
Operating Temperature:
-25℃~+85℃
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
