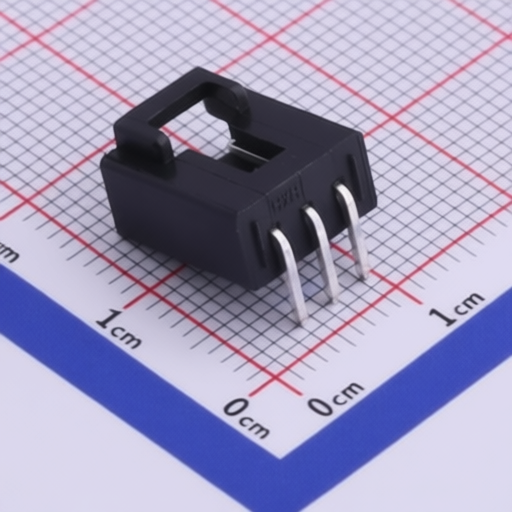

Hongxing HX25418-3WA

Hongxing HX25418-3WA

Name: Hongxing HX25418-3WA
Brand: Hongxing

Manufacturer: Hongxing Asian Brands

Mfr. Part #: HX25418-3WA

Package: Through Hole,Right Angle,P=2.54mm

Customer #:

Key Attributes: CONN HEADER TH R/A 3POS 2.54mm

Description: Connector Header 3 position 2.54mm Pitch 3A Right Angle -25℃~+85℃

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Hongxing

Package:

Through Hole,Right Angle,P=2.54mm

Y-Width of Bottom Edge on Board:

6.65mm

Pins Structure:

1x3P

Reference Series:

Contact Plating:

Tin

Contact Material:

Phosphor Bronze;PA66

Pitch:

2.54mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

Z-Height of the Board:

11.8mm

Row Spacing:

Operating Temperature:

-25℃~+85℃

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
