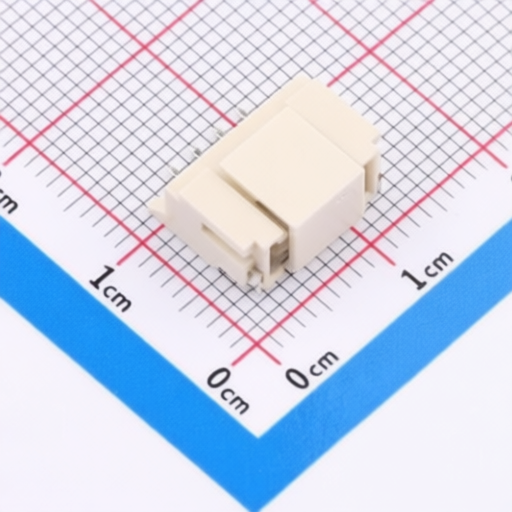

Hongxing HX20020-4AWB

Hongxing HX20020-4AWB

Name: Hongxing HX20020-4AWB
Brand: Hongxing

Manufacturer: Hongxing Asian Brands

Mfr. Part #: HX20020-4AWB

Package: SMD,P=2mm,Surface Mount,Right Angle

Customer #:

Key Attributes: CONN HEADER SMD R/A 4POS 2mm

Description: Connector Header 4 position 2mm Pitch Surface Mount, Right Angle

Datasheet: Hongxing HX20020-4AWB

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Hongxing

Package:

SMD,P=2mm,Surface Mount,Right Angle

Y-Width of Bottom Edge on Board:

10.2mm

Reference Series:

Pins Structure:

1x4P

Pitch:

2mm

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

11.95mm

Z-Height of the Board:

5.3mm

Mounting Type:

Surface Mount, Right Angle

Row Spacing:

Operating Temperature:

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	700
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Hongxing

1645 Products

Asian Brand

Zhejiang HX Electrical Co., Ltd. was established in 1989 and is a member of the China Electric Connector Components Industry Association, with a total factory area of 65,000 square meters. The company primarily produces electrical connectors and terminals.
