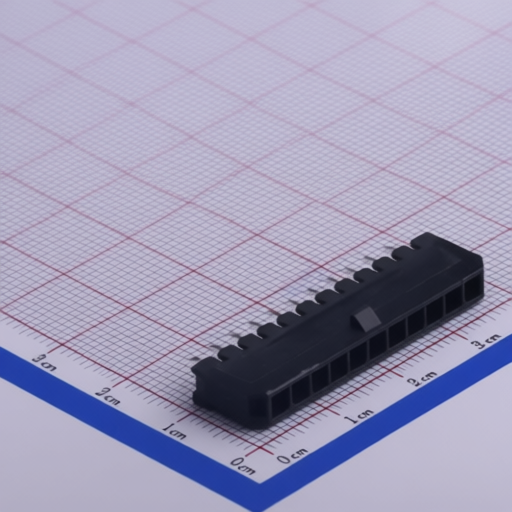

Hongxing HX30001-11A bk
Manufacturer:
Hongxing
Asian Brands
Mfr. Part #:
HX30001-11A bk
Package:
-
Customer #:
Description:
1x11P Tin PA66 3mm 250V 11 1 -25℃~+85℃ Through Hole Headers, Male Pins RoHS
Datasheet:
Hongxing HX30001-11A bk
Products Specifications
Manufacturer:
Package:
-
Y-Width of Bottom Edge on Board:
3.85mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x11P
Contact Plating:
Tin
Contact Material:
PA66
Pitch:
3mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
11
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
36.7mm
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
9.9mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
