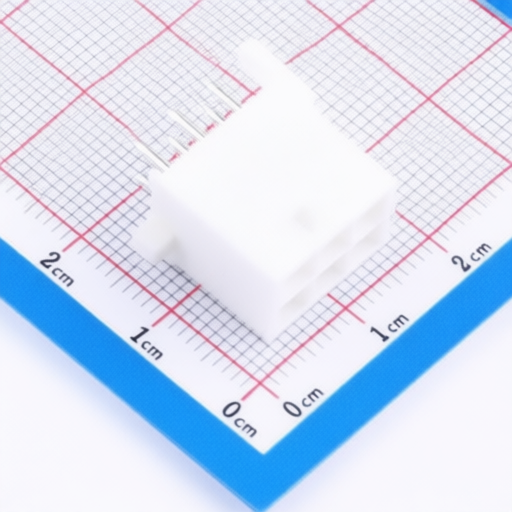

Hongxing HX41406-6A
Manufacturer:
Hongxing
Asian Brands
Mfr. Part #:
HX41406-6A
Package:
Through Hole,P=4.14mm
Customer #:
Key Attributes:
CONN HEADER TH 6POS 4.14mm
Description:
Connector Header 6 position 4.14mm Pitch 8A Through Hole -25℃~+105℃
Datasheet:
Hongxing HX41406-6A
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.14mm
Reference Series:
-
Pins Structure:
2x3P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;PA66
Pitch:
4.14mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
3
Number of Rows:
2
Row Spacing:
4.14mm
Operating Temperature:
-25℃~+105℃
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hongxing
1645 Products
Zhejiang HX Electrical Co., Ltd. was established in 1989 and is a member of the China Electric Connector Components Industry Association, with a total factory area of 65,000 square meters. The company primarily produces electrical connectors and terminals.
