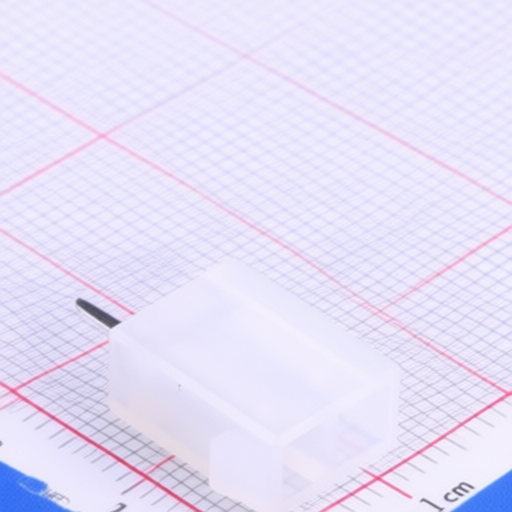

Hongxing HX42003-2WAF

Hongxing HX42003-2WAF

Name: Hongxing HX42003-2WAF
Brand: Hongxing

Manufacturer: Hongxing Asian Brands

Mfr. Part #: HX42003-2WAF

Package: Through Hole,Right Angle,P=4.2mm

Customer #:

Key Attributes: CONN HEADER TH R/A 2POS 4.2mm

Description: Connector Header 2 position 4.2mm Pitch Right Angle

Datasheet: Hongxing HX42003-2WAF

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Hongxing

Package:

Through Hole,Right Angle,P=4.2mm

Y-Width of Bottom Edge on Board:

13mm

Pins Structure:

1x2P

Reference Series:

Contact Plating:

Contact Material:

Brass;PA66

Operating Temperature:

-25℃~+85℃

Pitch:

4.2mm

Voltage Rating (Max):

300V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

5.6mm

Z-Height of the Board:

9.7mm

Row Spacing:

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Hongxing

1645 Products

Asian Brand

Zhejiang HX Electrical Co., Ltd. was established in 1989 and is a member of the China Electric Connector Components Industry Association, with a total factory area of 65,000 square meters. The company primarily produces electrical connectors and terminals.
