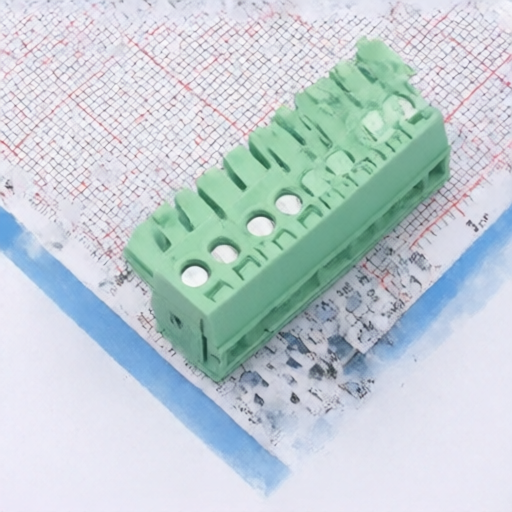

Hong Cheng HC-JXDZK-3.5-9P
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-JXDZK-3.5-9P
Package:
P=3.5mm
Customer #:
Description:
0.5~1.5 16~28 300V -40℃~+105℃ 9 8A Green 3.5mm 1 1x9P P=3.5mm Headers, Plugs and Sockets RoHS
Datasheet:
Hong Cheng HC-JXDZK-3.5-9P
Products Specifications
Manufacturer:
Package:
P=3.5mm
Wire Gauge - mm2:
0.5~1.5
Wire Gauge - AWG:
16~28
Number of Pins:
9P
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
9
Current Rating:
8A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Screw Connection (M2)
Pitch:
3.5mm
Connector Type:
-
Number of Rows:
1
Mounting Type:
-
Pin Structure:
1x9P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 150 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
