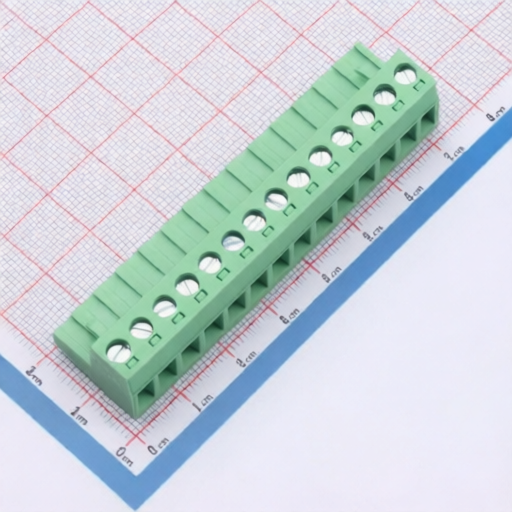

Hong Cheng HC-JXDZK-5.08-14P
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-JXDZK-5.08-14P
Package:
P=5.08mm
Customer #:
Description:
2.5 14~28 300V -40℃~+105℃ 14 15A Green 5.08mm 1 1x14P P=5.08mm Headers, Plugs and Sockets RoHS
Datasheet:
Hong Cheng HC-JXDZK-5.08-14P
Products Specifications
Manufacturer:
Package:
P=5.08mm
Wire Gauge - mm2:
2.5
Number of Pins:
14P
Wire Gauge - AWG:
14~28
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
14
Current Rating:
15A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Screw Connection (M2.5)
Pitch:
5.08mm
Connector Type:
-
Number of Rows:
1
Pin Structure:
1x14P
Mounting Type:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
