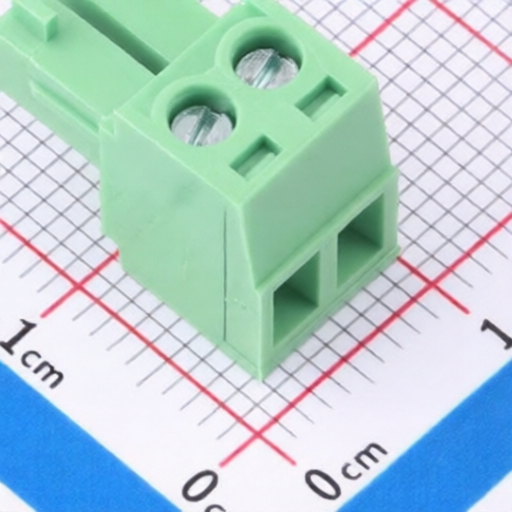

Hong Cheng HC-JXDZK-3.81-2P
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-JXDZK-3.81-2P
Package:
P=3.81mm
Customer #:
Key Attributes:
TERM BLOCK PLUG 2POS 3.81mm
Description:
2 Position Male Plug 3.81mm Pitch
Datasheet:
Hong Cheng HC-JXDZK-3.81-2P
Products Specifications
Manufacturer:
Package:
P=3.81mm
Wire Gauge - mm2:
0.5~1.5
Number of Pins:
2P
Wire Gauge - AWG:
14~24
Voltage Rating (Max):
300V
Operating Temperature:
-40℃~+105℃
Number of PINs Per Row:
2
Current Rating:
8A
Color:
Green
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Screw Connection (M2)
Pitch:
3.81mm
Connector Type:
Male Plug
Number of Rows:
1
Pin Structure:
1x2P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
