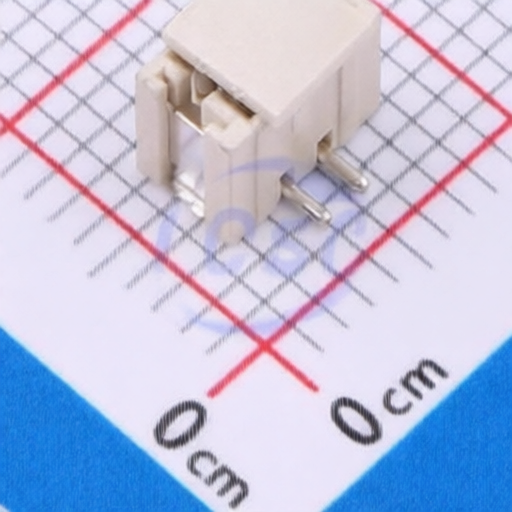

Hong Cheng HCZZ0068-2
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HCZZ0068-2
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 2POS 1.5mm
Description:
Connector Header 2 position 1.5mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Datasheet:
Hong Cheng HCZZ0068-2
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
5.05mm
Reference Series:
ZH
Pins Structure:
1x2P
Contact Plating:
Tin
Contact Material:
Copper;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
6mm
Row Spacing:
-
Z-Height of the Board:
5.25mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
