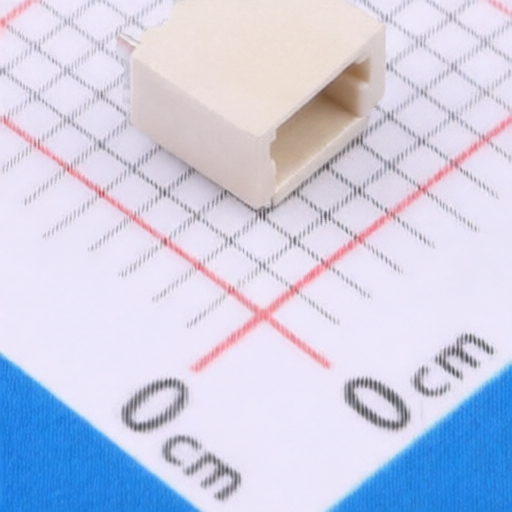

Hong Cheng HCZZ0032-2
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HCZZ0032-2
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 2POS 1mm
Description:
Connector Header 2 position 1mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
Hong Cheng HCZZ0032-2
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5mm
Pins Structure:
1x2P
Reference Series:
SH
Contact Plating:
Tin
Contact Material:
Copper;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
4.3mm
Row Spacing:
-
Z-Height of the Board:
-
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
