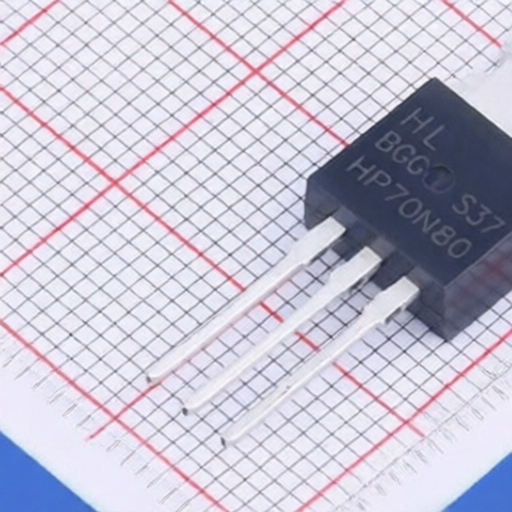

HL(Haolin Elec) HP70N80(BGG)

Name: HL(Haolin Elec) HP70N80(BGG)
Brand: HL(Haolin Elec)

Manufacturer: HL(Haolin Elec) Asian Brands

Mfr. Part #: HP70N80(BGG)

Package: TO-220

Customer #:

Key Attributes: N-Channel, Current:70A, Voltage:75V

Description: 75V 70A 10.5mΩ@10V 4V@250uA 125W TO-220 Single FETs, MOSFETs RoHS

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

HL(Haolin Elec)

Package:

TO-220

Drain to Source Voltage:

75V

Current - Continuous Drain(Id):

70A

RDS(on):

10.5mΩ@10V

Operating Temperature -:

-55℃~+175℃

Gate Threshold Voltage (Vgs(th)):

4V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

251pF

Output Capacitance(Coss):

315pF

Pd - Power Dissipation:

125W

Input Capacitance(Ciss):

3.293nF

Gate Charge(Qg):

67nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HL(Haolin Elec)

213 Products

Asian Brand

Shenzhen Haolin Electronics Co., Ltd. was established in 2002. It is specialized in manufacturing MOSFET, Schottky, power transistor 1300 and high voltage silicon reactor. Those products have been widely used in power supply, automotive lighting HID, UPS, residential lighting, small appliances, etc., "HL" MOSFET has a good reputation and stability. Quality has been widely recognized by customers.
