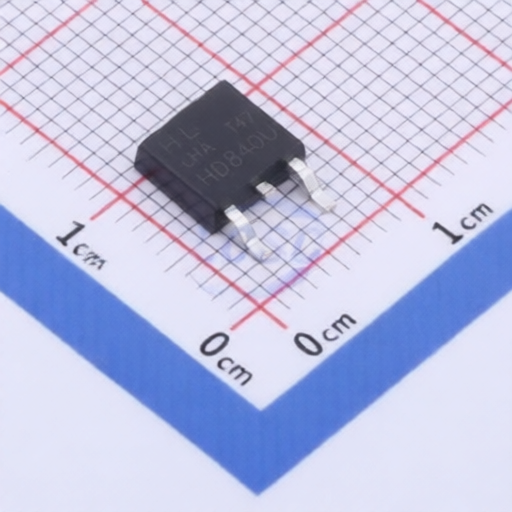

HL(Haolin Elec) HD840U(CHA)

HL(Haolin Elec) HD840U(CHA)

Name: HL(Haolin Elec) HD840U(CHA)
Brand: HL(Haolin Elec)

Manufacturer: HL(Haolin Elec) Asian Brands

Mfr. Part #: HD840U(CHA)

Package: TO-252-2

Customer #:

Key Attributes: 500V N-Channel MOSFET, Current:8.0A, Voltage:500V

Description: 500V 8A 850mΩ@10V 4V@250uA 135W TO-252-2 Single FETs, MOSFETs RoHS

Datasheet: HL(Haolin Elec) HD840U(CHA)

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

HL(Haolin Elec)

Package:

TO-252-2

Drain to Source Voltage:

500V

Current - Continuous Drain(Id):

Operating Temperature -:

-55℃~+150℃

RDS(on):

850mΩ@10V

Gate Threshold Voltage (Vgs(th)):

4V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

26pF

Number:

Output Capacitance(Coss):

170pF

Input Capacitance(Ciss):

1.3nF

Pd - Power Dissipation:

135W

Gate Charge(Qg):

33nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HL(Haolin Elec)

213 Products

Asian Brand

Shenzhen Haolin Electronics Co., Ltd. was established in 2002. It is specialized in manufacturing MOSFET, Schottky, power transistor 1300 and high voltage silicon reactor. Those products have been widely used in power supply, automotive lighting HID, UPS, residential lighting, small appliances, etc., "HL" MOSFET has a good reputation and stability. Quality has been widely recognized by customers.
