HL(Haolin Elec) HD80N03

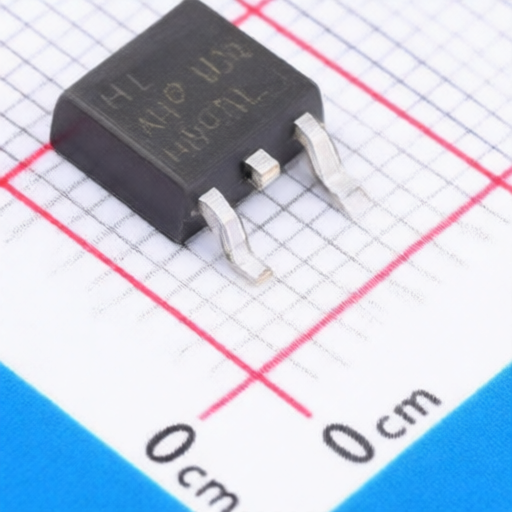

HL(Haolin Elec) HD80N03

Name: HL(Haolin Elec) HD80N03
Brand: HL(Haolin Elec)

Manufacturer: HL(Haolin Elec) Asian Brands

Mfr. Part #: HD80N03

Package: TO-252

Customer #:

Description: 30V 70A 8.5mΩ@5V,15A 1V 1 N-channel 65W TO-252 Single FETs, MOSFETs RoHS

Datasheet: HL(Haolin Elec) HD80N03

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

HL(Haolin Elec)

Package:

TO-252

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

70A

Operating Temperature -:

-55℃~+175℃

RDS(on):

8.5mΩ@5V,15A

Gate Threshold Voltage (Vgs(th)):

Reverse Transfer Capacitance (Crss@Vds):

195pF

Number:

1 N-channel

Input Capacitance(Ciss):

2.2nF

Pd - Power Dissipation:

65W

Gate Charge(Qg):

47nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HL(Haolin Elec)

213 Products

Asian Brand

Shenzhen Haolin Electronics Co., Ltd. was established in 2002. It is specialized in manufacturing MOSFET, Schottky, power transistor 1300 and high voltage silicon reactor. Those products have been widely used in power supply, automotive lighting HID, UPS, residential lighting, small appliances, etc., "HL" MOSFET has a good reputation and stability. Quality has been widely recognized by customers.
