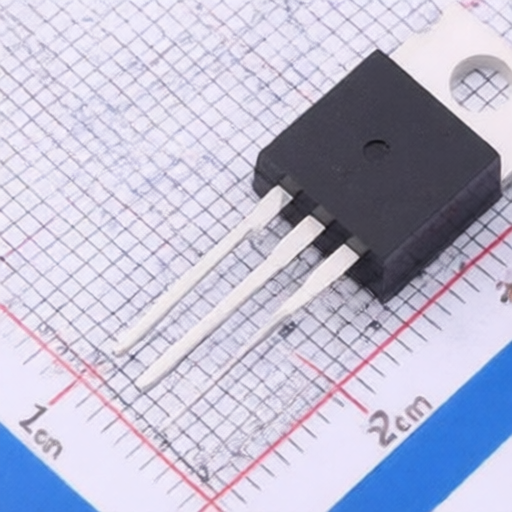

HL(Haolin Elec) HP70N80
Manufacturer:
HL(Haolin Elec)
Asian Brands
Mfr. Part #:
HP70N80
Package:
TO-220
Customer #:
Description:
80V 70A 11mΩ@10V,40A 3V 1 N-channel 200W TO-220 Single FETs, MOSFETs RoHS
Datasheet:
HL(Haolin Elec) HP70N80
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
80V
Current - Continuous Drain(Id):
70A
Operating Temperature -:
-55℃~+150℃
RDS(on):
11mΩ@10V,40A
Gate Threshold Voltage (Vgs(th)):
3V
Reverse Transfer Capacitance (Crss@Vds):
250pF@30V
Number:
1 N-channel
Input Capacitance(Ciss):
4.2nF@30V
Pd - Power Dissipation:
200W
Gate Charge(Qg):
108nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL(Haolin Elec)
213 Products
Shenzhen Haolin Electronics Co., Ltd. was established in 2002. It is specialized in manufacturing MOSFET, Schottky, power transistor 1300 and high voltage silicon reactor. Those products have been widely used in power supply, automotive lighting HID, UPS, residential lighting, small appliances, etc., "HL" MOSFET has a good reputation and stability. Quality has been widely recognized by customers.
