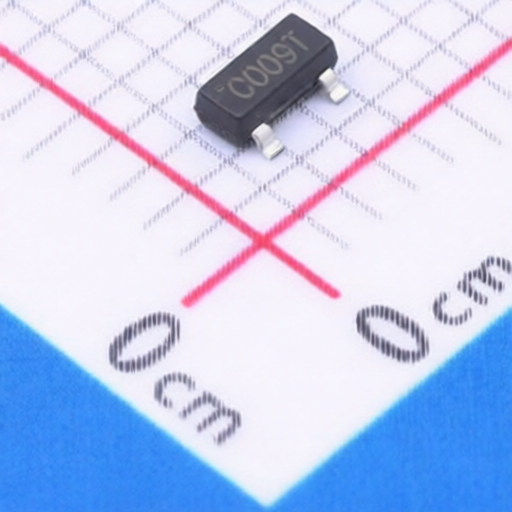

HL(Haolin Elec) HL2300
Manufacturer:
HL(Haolin Elec)
Asian Brands
Mfr. Part #:
HL2300
Package:
SOT-23
Customer #:
Key Attributes:
N-Channel, Current:4A, Voltage:20V
Description:
20V 600mV 1 N-channel SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
HL(Haolin Elec) HL2300
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
-
RDS(on):
-
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
600mV
Reverse Transfer Capacitance (Crss@Vds):
-
Number:
1 N-channel
Input Capacitance(Ciss):
-
Pd - Power Dissipation:
-
Gate Charge(Qg):
6.06nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL(Haolin Elec)
213 Products
Shenzhen Haolin Electronics Co., Ltd. was established in 2002. It is specialized in manufacturing MOSFET, Schottky, power transistor 1300 and high voltage silicon reactor. Those products have been widely used in power supply, automotive lighting HID, UPS, residential lighting, small appliances, etc., "HL" MOSFET has a good reputation and stability. Quality has been widely recognized by customers.
