HL HL6288Q
Manufacturer:
HL
Asian Brands
Mfr. Part #:
HL6288Q
Package:

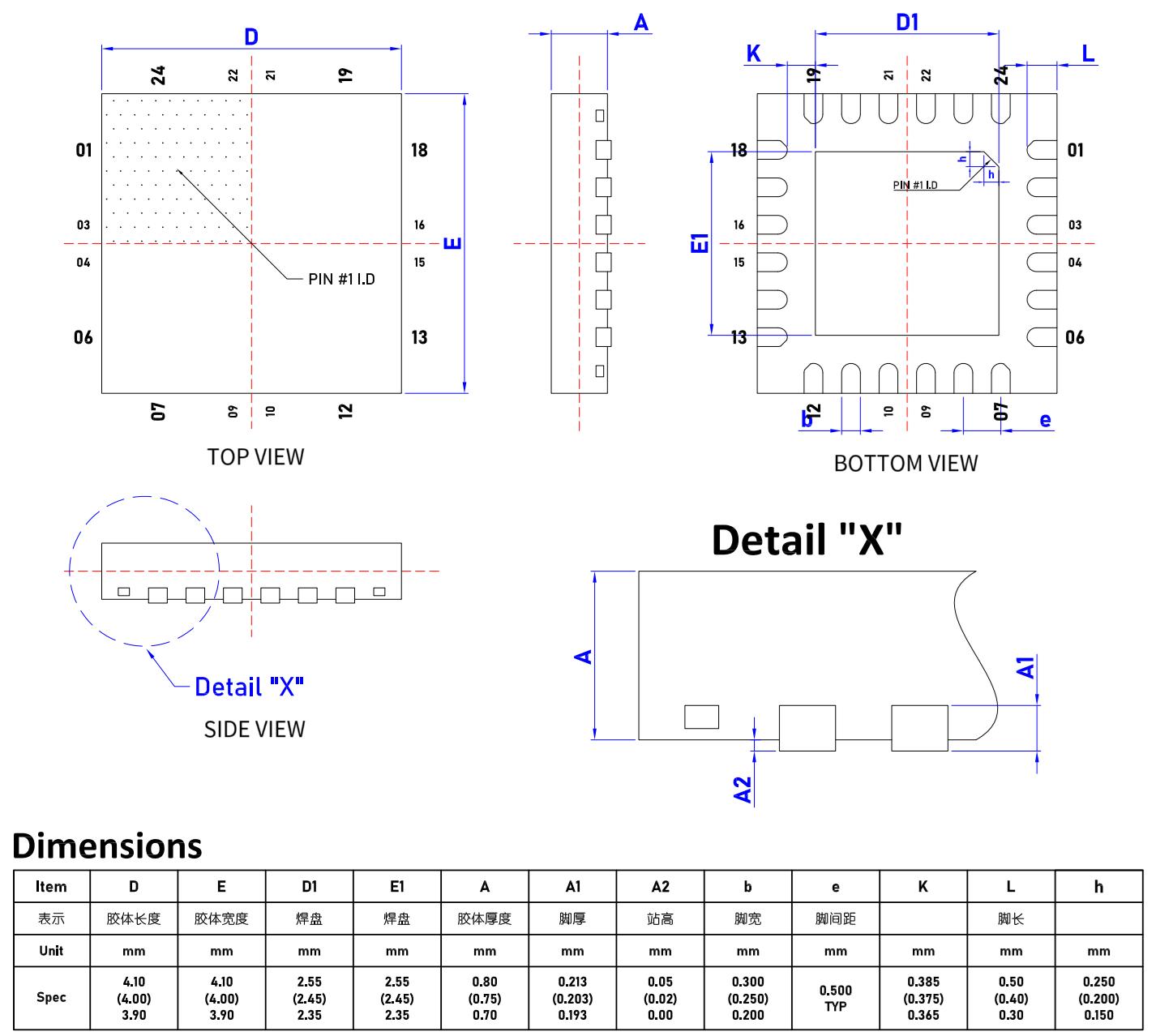

QFN-24(4x4)
Customer #:
Description:
QFN-24(4x4) Gate Drivers RoHS
Datasheet:
HL HL6288Q
Products Specifications
Manufacturer:
Package:
QFN-24(4x4)
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
300ns
Propagation Delay tpHL:
170ns
Peak Output Current(Source):
1.5A
Rise Time:
30ns
Peak Output Current(Sink):
1.8A
Fall Time:
30ns
Features:
Under Voltage Protection
Quiescent Current(Iq):
150uA
Load Type:
MOSFET;IGBT
Input Voltage (Vin):
5V~20V
Driven Configuration:
Three Phase;Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 6000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL
282 Products
HL is located in Shenzhen, China, and is a national high-tech enterprise focusing on MCUs, motor drivers, and system control. The company primarily produces microcontroller units (MCUs), motor driver chips, and related products for system control.
