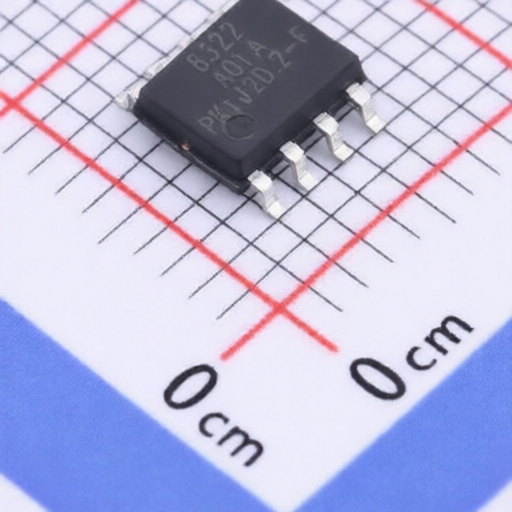

NATLINEAR LN8322SR-G
Manufacturer:
NATLINEAR
Asian Brands
Mfr. Part #:
LN8322SR-G
Package:
SOP-8
Customer #:
Key Attributes:
30V half-bridge gate driver
Description:
Half-Bridge Gate Driver IC MOSFET SOP-8
Datasheet:
NATLINEAR LN8322SR-G
Products Specifications
Manufacturer:
Package:
SOP-8
Operating Temperature:
-40℃~+150℃
Propagation Delay tpLH:
30ns;25ns
Propagation Delay tpHL:
13ns;12ns
Peak Output Current(Source):
-
Peak Output Current(Sink):
-
Rise Time:
15ns;16ns
Fall Time:
10ns
Features:
Under Voltage Protection
Quiescent Current(Iq):
300uA
Load Type:
MOSFET
Input Voltage (Vin):
4.5V~13.2V
Driven Configuration:
Half-Bridge
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NATLINEAR
200 Products
NATLINEAR was founded in 2004 and is located in Zhangjiang, Shanghai. The company specializes in the research and development, as well as the manufacturing of mixed-signal chips. Adopting a "Fabless+" business model, NATLINEAR aims to enhance its overall competitiveness in terms of product, quality, cost, delivery, and service. The primary focus is on the production of power management chips.
