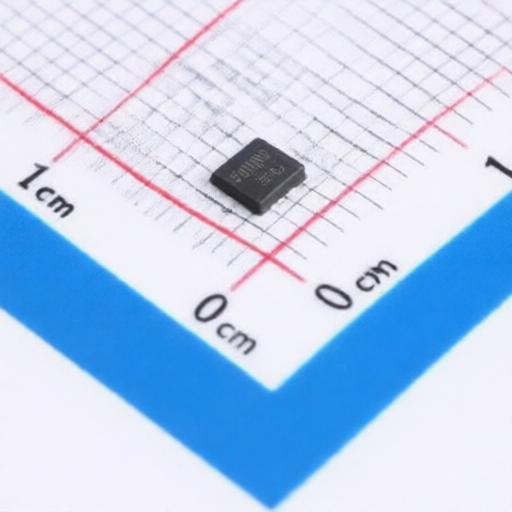

HL S60N03D
Manufacturer:
HL
Asian Brands
Mfr. Part #:
S60N03D
Package:
PDFN3x3-8
Customer #:
Key Attributes:
MOSFET N-CH 30V 62A PDFN3x3-8
Description:
N-Channel 30V 62A 30W Surface Mount PDFN3x3-8
Datasheet:
HL S60N03D
Products Specifications
Manufacturer:
Package:
PDFN3x3-8
Configuration:
-
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
62A
Operating Temperature -:
-55℃~+150℃
RDS(on):
9mΩ@4.5V,15A
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
41pF
Number:
1 N-channel
Output Capacitance(Coss):
498pF
Pd - Power Dissipation:
30W
Input Capacitance(Ciss):
814pF
Gate Charge(Qg):
8nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL
282 Products
HL is located in Shenzhen, China, and is a national high-tech enterprise focusing on MCUs, motor drivers, and system control. The company primarily produces microcontroller units (MCUs), motor driver chips, and related products for system control.
