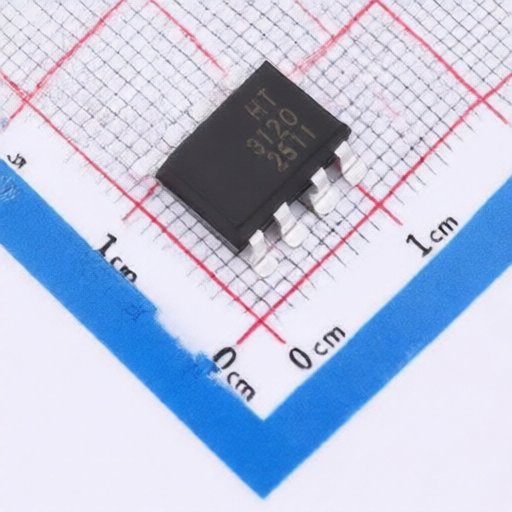

HENGTUO HT-3120-S1TA1

HENGTUO HT-3120-S1TA1

Name: HENGTUO HT-3120-S1TA1
Brand: HENGTUO

Manufacturer: HENGTUO Asian Brands

Mfr. Part #: HT-3120-S1TA1

Package: SMD-8P

Customer #:

Description: 2.5A 5V 15V~30V 80ns 80ns 1.34V SMD-8P Isolators - Gate Drivers RoHS

Datasheet: HENGTUO HT-3120-S1TA1

Products Specifications

Category:

Isolators/Isolators - Gate Drivers

Manufacturer:

HENGTUO

Package:

SMD-8P

Power Dissipation:

300mW

Output Current:

2.5A

Operating Temperature:

-40℃~+110℃

Isolation voltage(Vrms):

5kV

Propagation Delay(tpd):

150ns;150ns

Reverse Voltage:

Load Type:

MOSFET;IGBT

Voltage - Supply:

15V~30V

Rise Time:

80ns

Fall Time:

80ns

Voltage - Forward(Vf):

1.34V

CMTI(kV/us):

25kV/us

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	-
USHTS	-
TARIC	-
CAHTS	-
BRHTS	-
INHTS	-
MXHTS	-

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HENGTUO

126 Products

Asian Brand

HENGTUO ELECTRONICS covers an area of 50 mu with a building area of 40,000 square meters and has a complete packaging and testing industry chain. In recent years, the company has accelerated its investment and construction, fully laying out optocoupler products. The main products include DC transistor optocouplers, AC transistor optocouplers, photorelays, high-voltage thyristor optocouplers, gate driver optocouplers, and high-speed optocouplers.
