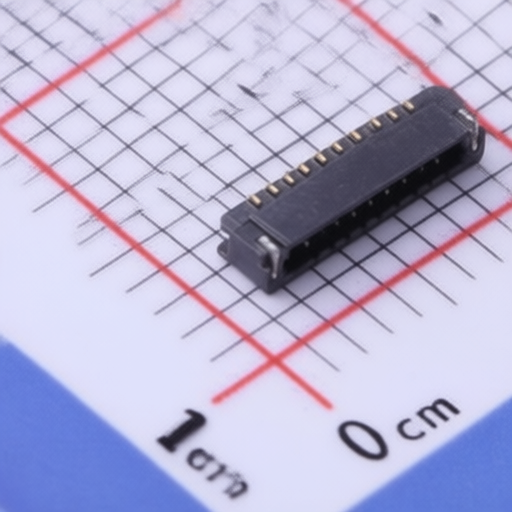

HDGC HDGC0601WR-S-10P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC0601WR-S-10P
Package:
SMD,P=0.6mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 10POS 0.6mm
Description:
Connector Header 10 position 0.6mm Pitch 200mA Surface Mount, Right Angle -25℃~+85℃
Datasheet:
HDGC HDGC0601WR-S-10P
Products Specifications
Manufacturer:
Package:
SMD,P=0.6mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
2mm
Reference Series:
-
Pins Structure:
1x10P
Contact Plating:
-
Contact Material:
Phosphor Bronze;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
0.6mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
10
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
1.55mm
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
