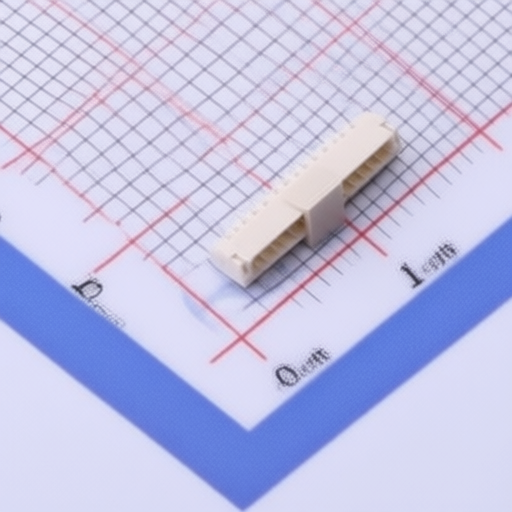

HDGC HDGC0802WV-S-14P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC0802WV-S-14P
Package:
SMD,P=0.8mm
Customer #:
Key Attributes:
CONN HEADER SMD 14POS 0.8mm
Description:
Connector Header 14 position 0.8mm Pitch 0.5A Surface Mount,Vertical -25℃~+85℃
Datasheet:
HDGC HDGC0802WV-S-14P
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm
Y-Width of Bottom Edge on Board:
1.75mm
Reference Series:
-
Pins Structure:
1x14P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
Auxiliary Solder Pin
Pitch:
0.8mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
14
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
13.38mm
Row Spacing:
-
Z-Height of the Board:
2.75mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
