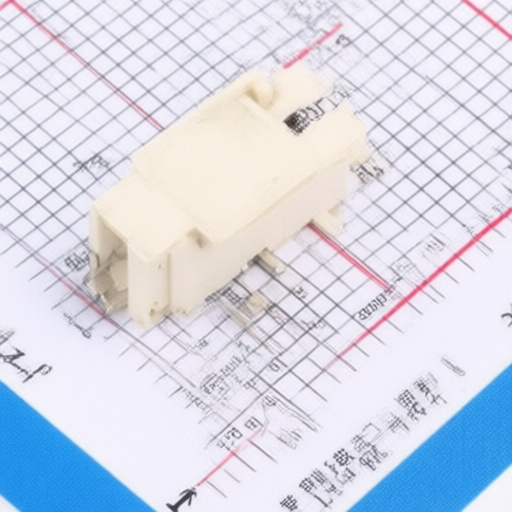

HDGC HDGC2001WV-S-4P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC2001WV-S-4P
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 2mm
Description:
Connector Header 4 position 2mm Pitch 5A Surface Mount,Vertical -25℃~+70℃
Datasheet:
HDGC HDGC2001WV-S-4P
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
7.45mm
Flame Retardant Rating:
UL94V-0
Reference Series:
PH
Pins Structure:
1x4P
Contact Material:
Brass;LCP
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
4
Number of Rows:
1
Z-Height of the Board:
6.9mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Operating Temperature:
-25℃~+70℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 700 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
