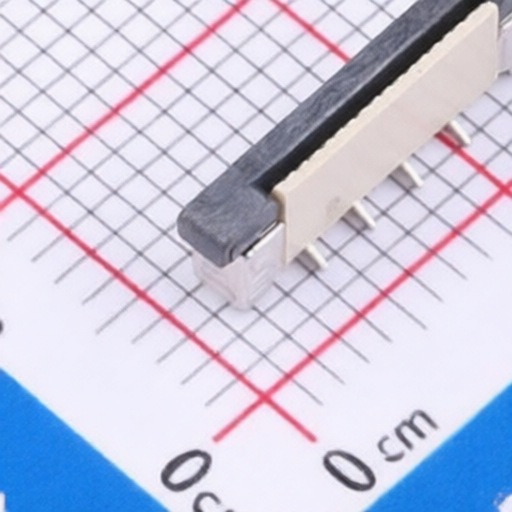

HDGC 1.0K-N-8PB
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
1.0K-N-8PB
Package:
SMD,P=1mm(Staggered Pins)
Customer #:
Key Attributes:
CONN FFC FPC 8POS 1mm VERTICAL - 1 SIDED CNT SMD
Description:
FFC/FPC Connector 8 Position 1mm Pitch Single-side Contact/Vertical Surface Mount -20℃~+85℃
Datasheet:
HDGC 1.0K-N-8PB
Products Specifications
Manufacturer:
Package:
SMD,P=1mm(Staggered Pins)
Locking Feature:
Slide Lock
Operating Temperature:
-20℃~+85℃
Number of Contacts:
8P
Pitch:
1mm
Current Rating:
400mA
Voltage Rating (Max):
50V
Contact Type:
Single-side Contact/Vertical
Mounting Type:
Surface Mount,Vertical
FFC, FCB Thickness:
0.3mm
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 41 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
