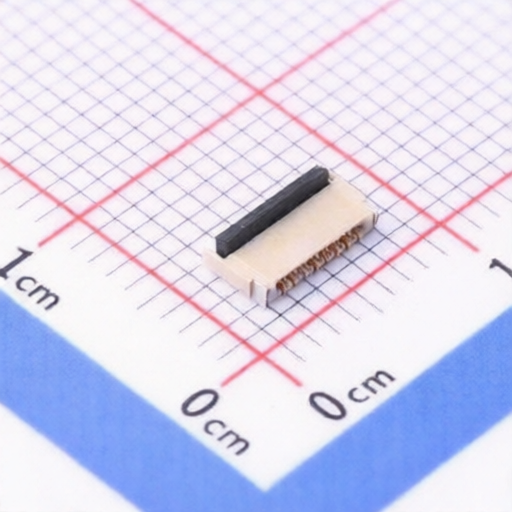

HDGC 0.3K-HX-15PWB
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
0.3K-HX-15PWB
Package:
SMD,P=0.3mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 15POS 0.3mm TOP CNT SMD R/A
Description:
FFC/FPC Connector 15 Position 0.3mm Pitch Top Contact Surface Mount, Right Angle -55℃~+85℃
Datasheet:
HDGC 0.3K-HX-15PWB
Products Specifications
Manufacturer:
Package:
SMD,P=0.3mm,Surface Mount,Right Angle
Operating Temperature:
-55℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
15P
Pitch:
0.3mm
Contact Type:
Top Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.2mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
