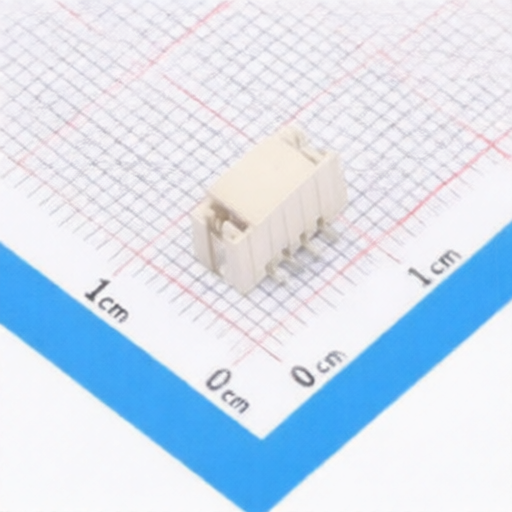

HCTL HC-ZH-4PLT
Manufacturer:
HCTL
Mfr. Part #:
HC-ZH-4PLT
Package:
SMD,P=1.5mm
Customer #:
Description:
Connector Header 4 position 1.5mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Datasheet:
HCTL HC-ZH-4PLT
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
5.2mm
Reference Series:
ZH
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Brass;PA6T
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
9mm
Z-Height of the Board:
5.1mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
