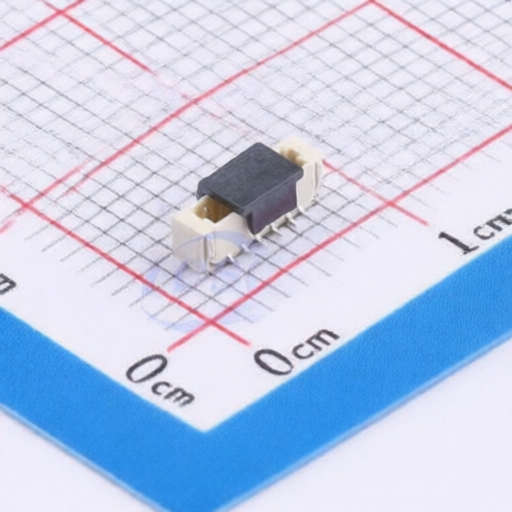

HCTL HC-0.8-6PLT

Name: HCTL HC-0.8-6PLT
Brand: HCTL

Manufacturer: HCTL

Mfr. Part #: HC-0.8-6PLT

Package: SMD,P=0.8mm

Customer #:

Description: Connector Header 6 position 0.8mm Pitch 500mA Surface Mount,Vertical -25℃~+85℃

Datasheet: HCTL HC-0.8-6PLT

Products Specifications

Manufacturer:

HCTL

Package:

SMD,P=0.8mm

Y-Width of Bottom Edge on Board:

2.15mm

Reference Series:

Pins Structure:

1x6P

Contact Plating:

Tin

Contact Material:

Phosphor Bronze;LCP

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Supplementary Features:

Auxiliary Solder Pin

Pitch:

0.8mm

Voltage Rating (Max):

30V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

7mm

Z-Height of the Board:

2.8mm

Row Spacing:

Mounting Type:

Surface Mount,Vertical

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HCTL

2177 Products

Asian Brand

Shenzhen Huacan Tianlu Electronics Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The company is located in Bao'an District, Shenzhen. Shenzhen Huacan Tianlu Electronics Co., Ltd. has been focusing on the research and development, production and sales of various connectors, TYPE-C, and rocker switches since its establishment. The company has a group of professional technicians and a complete quality monitoring system, and has successively introduced advanced testing instruments and production equipment at home and abroad to ensure product quality.
