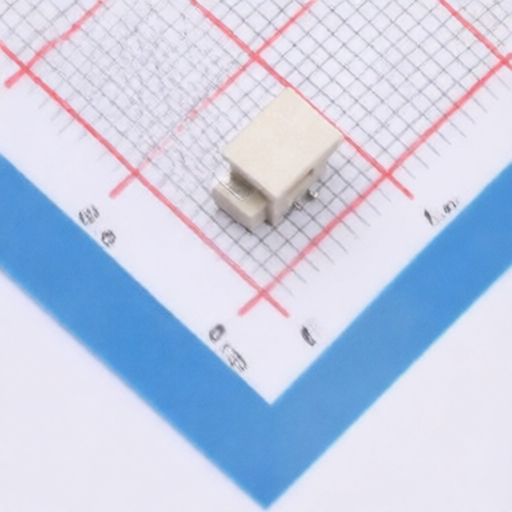

HCTL HC-1.25-2PLT
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
HC-1.25-2PLT
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 2POS 1.25mm
Description:
Connector Header 2 position 1.25mm Pitch 2A Surface Mount,Vertical -25℃~+85℃
Datasheet:
HCTL HC-1.25-2PLT
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.2mm
Pins Structure:
1x2P
Reference Series:
PicoBlade(MX 1.25)
Contact Plating:
Tin
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
1.25mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
7.3mm
Z-Height of the Board:
4.75mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HCTL
2177 Products
Shenzhen Huacan Tianlu Electronics Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The company is located in Bao'an District, Shenzhen.
Shenzhen Huacan Tianlu Electronics Co., Ltd. has been focusing on the research and development, production and sales of various connectors, TYPE-C, and rocker switches since its establishment. The company has a group of professional technicians and a complete quality monitoring system, and has successively introduced advanced testing instruments and production equipment at home and abroad to ensure product quality.
