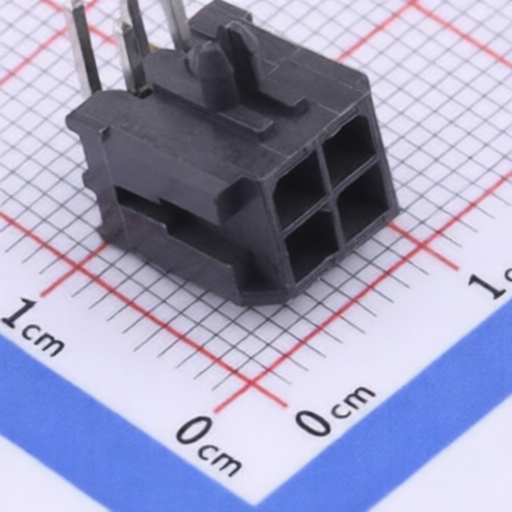

HCTL HC-MX3.0-2*2AW
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
HC-MX3.0-2*2AW
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 4POS 3mm
Description:
Connector Header 4 position 3mm Pitch 5A Right Angle -25℃~+85℃
Datasheet:
HCTL HC-MX3.0-2*2AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
-
Reference Series:
Micro-Fit(MX 3.0)
Pins Structure:
2x2P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
Harpoon Contact (Plastic)
Pitch:
3mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
-
Z-Height of the Board:
-
Row Spacing:
3mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
