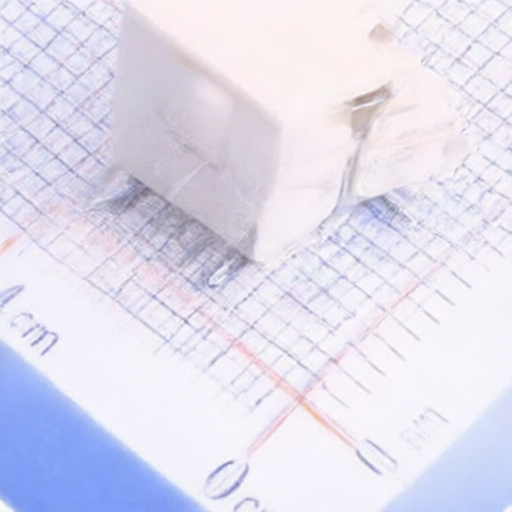

HCTL HC-PH-2ALT

Name: HCTL HC-PH-2ALT
Brand: HCTL

Manufacturer: HCTL

Mfr. Part #: HC-PH-2ALT

Package: SMD,P=2mm

Customer #:

Description: Connector Header 2 position 2mm Pitch 2A Surface Mount,Vertical -25℃~+85℃

Datasheet: HCTL HC-PH-2ALT

Products Specifications

Manufacturer:

HCTL

Package:

SMD,P=2mm

Y-Width of Bottom Edge on Board:

7.4mm

Pins Structure:

1x2P

Reference Series:

Contact Plating:

Tin

Contact Material:

Brass

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Pitch:

2mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

8mm

Z-Height of the Board:

6.75mm

Row Spacing:

Mounting Type:

Surface Mount,Vertical

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
