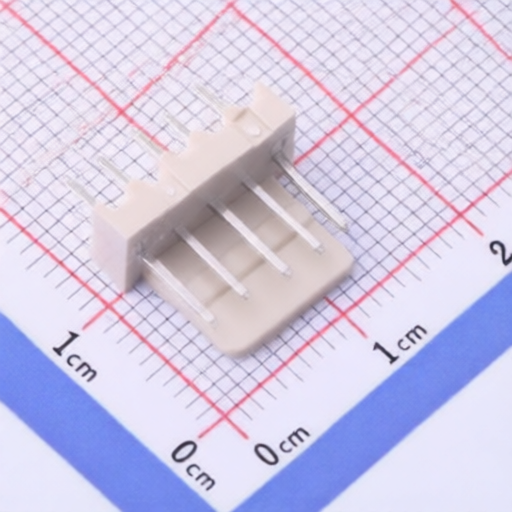

HCTL HC-2510-5A
Manufacturer:
HCTL
Mfr. Part #:
HC-2510-5A
Package:
Through Hole,P=2.54mm
Customer #:
Description:
Connector Header 5 position 2.54mm Pitch 4A Through Hole -25℃~+85℃
Datasheet:
HCTL HC-2510-5A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Y-Width of Bottom Edge on Board:
5.8mm
Reference Series:
-
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
-
Pitch:
2.54mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
12.7mm
Z-Height of the Board:
11.6mm
Row Spacing:
-
Mounting Type:
Through Hole
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
