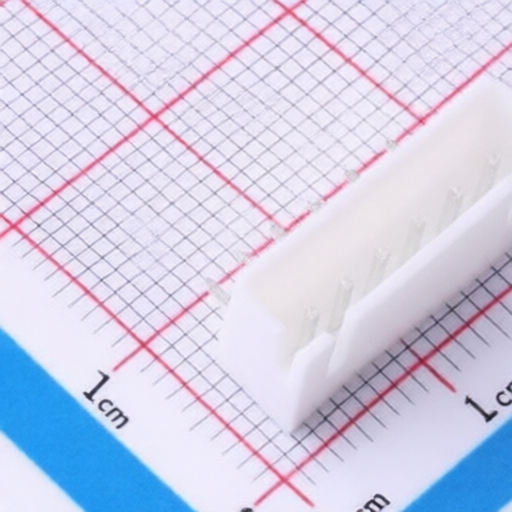

HCTL XH-6AW
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
XH-6AW
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 6POS 2.5mm
Description:
Connector Header 6 position 2.5mm Pitch 3A Right Angle -25℃~+85℃
Datasheet:
HCTL XH-6AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Y-Width of Bottom Edge on Board:
7mm
Reference Series:
XH
Pins Structure:
1x6P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
6
Number of Rows:
1
Z-Height of the Board:
5.9mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
