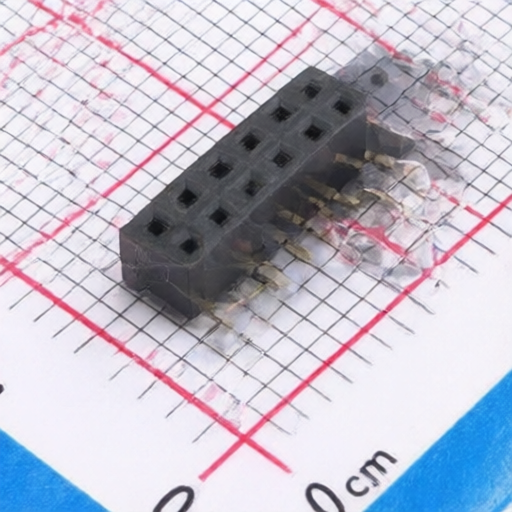

hanxia HX PM2.0-2x7P TP
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.0-2x7P TP
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN SOCKET 14POS 2mm DUAL ROW SMD
Description:
Female Header 14 Position 2mm Pitch Dual Row Surface Mount -40℃~+105℃
Datasheet:
hanxia HX PM2.0-2x7P TP
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Pitch:
2mm
Row Spacing:
2mm
Voltage Rating (Max):
500V
Number of Pins:
14P
PIN Length:
-
Current Rating:
1.5A
Number of Rows:
2
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x7P
Holes Direction:
Top
Mounting Type:
Surface Mount,Vertical
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 6 |
| Multiple | 6 |
| Standard Packaging | 42 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
