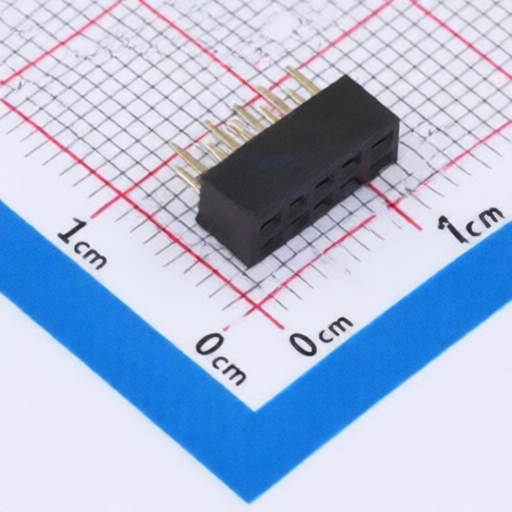

hanxia HX PM2.0-2x5P ZC
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.0-2x5P ZC
Package:
Through Hole,P=2mm
Customer #:
Key Attributes:
CONN SOCKET 10POS 2mm DUAL ROW TH
Description:
2mm 2mm 500V 10P 1.5A 2 Gold Brass 2x5P -40℃~+105℃ Top Square Hole Through Hole Through Hole,P=2mm Headers, Receptacles, Female Sockets RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Pitch:
2mm
Row Spacing:
2mm
Voltage Rating (Max):
500V
Number of Pins:
10P
PIN Length:
2.8mm
Current Rating:
1.5A
Number of Rows:
2
Contact Plating:
Gold
Contact Material:
Brass
Holes Structure:
2x5P
Operating Temperature:
-40℃~+105℃
Holes Direction:
Top
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 59 |
| Multiple | 59 |
| Standard Packaging | 59 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
