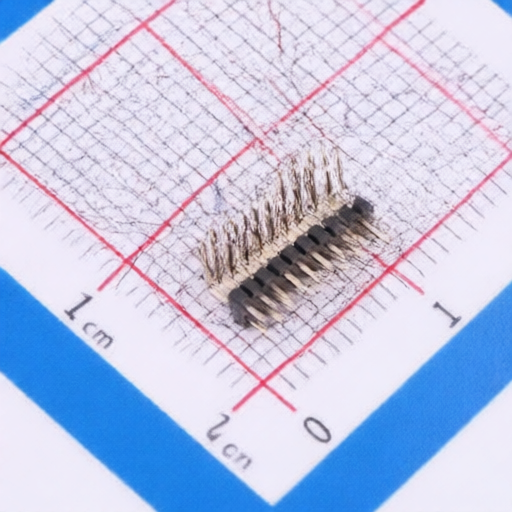

hanxia HX PZ1.0-2x10P WZ
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PZ1.0-2x10P WZ
Package:
Through Hole,Right Angle,P=1mm
Customer #:
Key Attributes:
CONN HEADER 20POS 1mm DUAL ROW TH R/A
Description:
Pin Header 20 Position 1mm Pitch Dual Row Through Hole, Right Angle -40℃~+105℃
Datasheet:
hanxia HX PZ1.0-2x10P WZ
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1mm
Number of Pins:
20P
Pins Structure:
2x10P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Supplementary Features:
-
Pitch:
1mm
Insulation Height:
1mm
Length of Mating Pin:
1.8mm
Voltage Rating (Max):
500V
Length of End Connection Pin:
-
Number of Rows:
2
Current Rating-Signal:
750mA
Mounting Type:
Right Angle
Row Spacing:
1mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
