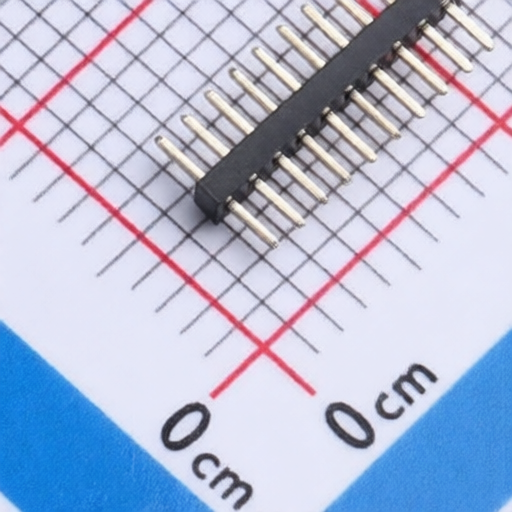

hanxia HX PH100-01-10-Z-L5.0
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PH100-01-10-Z-L5.0
Package:
Through Hole,P=1mm
Customer #:
Description:
10P 1x10P Gold Phosphor Bronze -40℃~+105℃ Pin Header Black 1mm 1mm 2mm 500V 2mm 750mA 1 Through Hole Through Hole,P=1mm Headers, Male Pins RoHS
Datasheet:
hanxia HX PH100-01-10-Z-L5.0
Products Specifications
Manufacturer:
Package:
Through Hole,P=1mm
Number of Pins:
10P
Pins Structure:
1x10P
Contact Plating:
Gold
Contact Material:
Phosphor Bronze
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Supplementary Features:
-
Pitch:
1mm
Insulation Height:
1mm
Length of Mating Pin:
2mm
Voltage Rating (Max):
500V
Length of End Connection Pin:
2mm
Current Rating-Signal:
750mA
Number of Rows:
1
Mounting Type:
Through Hole
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
