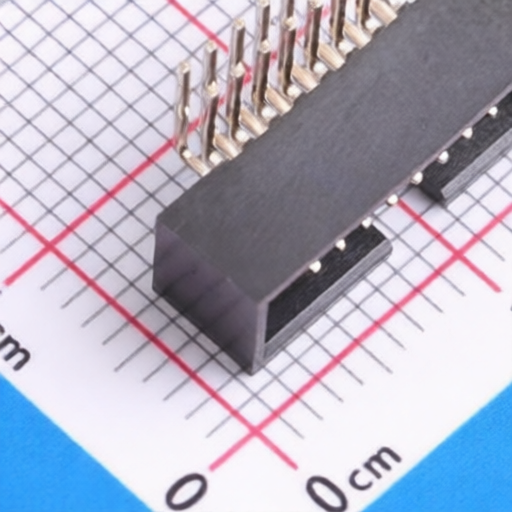

hanxia HX JN1.27-2x8 WZ H4.9
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX JN1.27-2x8 WZ H4.9
Package:
Through Hole,Right Angle,P=1.27mm
Customer #:
Key Attributes:
CONN IDC HEADER TH R/A 16POS 1.27mm
Description:
Connector IDC Header Through Hole, Right Angle 16 position 1.27mm
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.27mm
Row Spacing:
1.27mm
Operating Temperature:
-40℃~+105℃
Color:
Black
Current Rating:
1A
Contact Plating:
Gold
Contact Material:
Copper
Number of Positions or Pins:
2x8P
Voltage Rating (Max):
500V
Number of PINs Per Row:
8
Number of Rows:
2
Pitch:
1.27mm
Connector Type:
IDC Header
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 260 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
