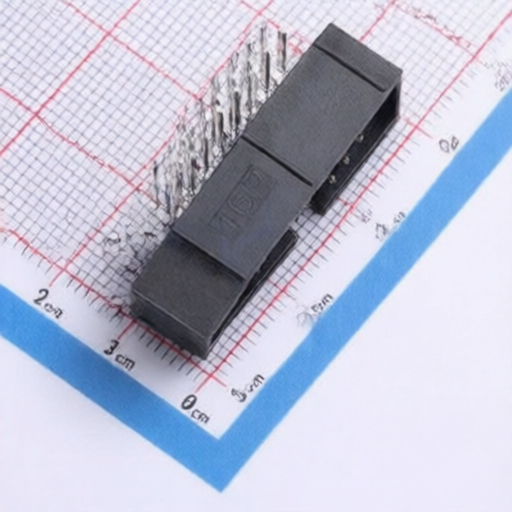

hanxia HX IDC254-2-08-W-8.9
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX IDC254-2-08-W-8.9
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Description:
2.54mm -40℃~+105℃ 3A Gold Phosphor Bronze 2x8P 1kV 8 2 2.54mm IDC Header Right Angle Through Hole,Right Angle,P=2.54mm Free Hanging, Panel Mount RoHS
Datasheet:
hanxia HX IDC254-2-08-W-8.9
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Row Spacing:
2.54mm
Operating Temperature:
-40℃~+105℃
Color:
Black
Current Rating:
3A
Contact Plating:
Gold
Contact Material:
Phosphor Bronze
Number of Positions or Pins:
2x8P
Voltage Rating (Max):
1kV
Number of PINs Per Row:
8
Number of Rows:
2
Pitch:
2.54mm
Connector Type:
IDC Header
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 180 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
